Files

Revisium supports file attachments at any level of your schema. Files are stored in S3-compatible storage and managed through the Admin UI or REST API.

File fields are like slots in your schema — you define where files go, the platform handles upload, storage, and metadata. Any file type is supported: images, documents, videos, archives, or any other binary. Unopinionated: embed files directly in your tables, create a dedicated assets table, or mix both — structure it however fits your project.

File Fields in Schema

Use the File system schema reference ($ref) to add a file field. Works at any level — root, nested objects, arrays:

Data

{
  "title": "Getting Started Guide",
  "slides": [
    {
      "image": { "status": "uploaded", "fileId": "...", "url": "https://s3.../step1.jpg", "fileName": "step1.jpg", ... },
      "caption": "Step 1: Create a project"
    },
    {
      "image": { "status": "ready", "fileId": "...", "url": "", "fileName": "", ... },
      "caption": "Step 2: Design schema"
    }
  ],
  "branding": {
    "logo": { "status": "uploaded", "fileId": "...", "url": "https://s3.../logo.svg", "fileName": "logo.svg", ... },
    "color": "#171717"
  }
}

Schema

{
  "type": "object",
  "properties": {
    "title": { "type": "string", "default": "" },
    "slides": {
      "type": "array",
      "items": {
        "type": "object",
        "properties": {
          "image": { "$ref": "urn:jsonschema:io:revisium:file-schema:1.0.0" },
          "caption": { "type": "string", "default": "" }
        },
        "required": ["image", "caption"],
        "additionalProperties": false
      }
    },
    "branding": {
      "type": "object",
      "properties": {
        "logo": { "$ref": "urn:jsonschema:io:revisium:file-schema:1.0.0" },
        "color": { "type": "string", "default": "" }
      },
      "required": ["logo", "color"],
      "additionalProperties": false
    }
  },
  "required": ["title", "slides", "branding"],
  "additionalProperties": false
}

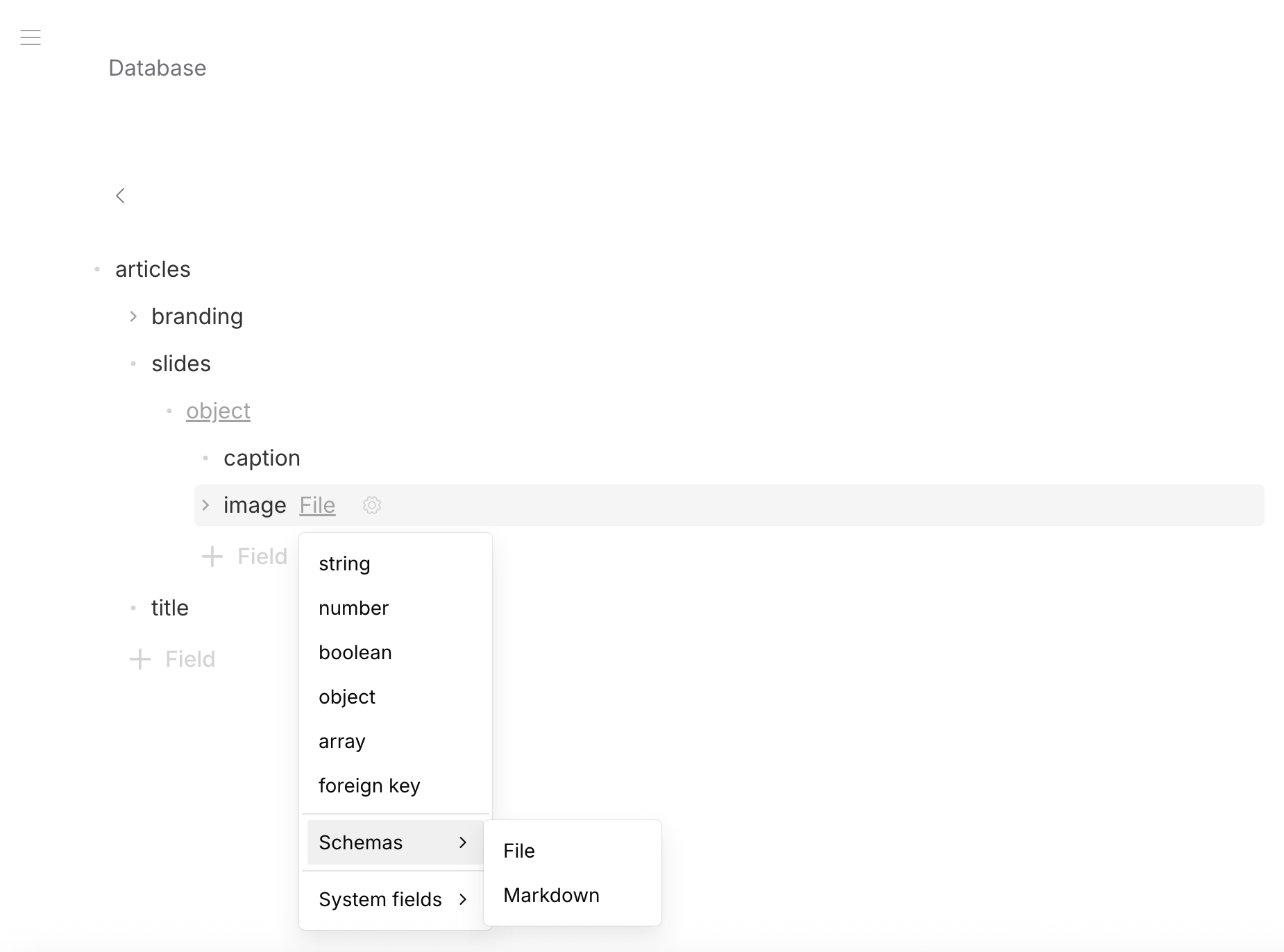

Schema Editor — articles table with File fields in slides array and branding object, Schemas submenu showing File option

File Schema

The File schema is a pre-defined system schema — you don't need to create it. Each file field is an object with 10 fields. All are read-only except fileName:

Field	Type	ReadOnly	Description
status	string	yes	"ready" (slot created, awaiting upload), "uploaded"
fileId	string	yes	Unique ID for upload — generated when row is created
url	string	yes	S3 URL — populated after upload
fileName	string	no	Original file name — editable by user
hash	string	yes	Content hash (SHA-256)
extension	string	yes	File extension (e.g., "jpg", "pdf")
mimeType	string	yes	MIME type (e.g., "image/jpeg")
size	number	yes	File size in bytes
width	number	yes	Image width in pixels (0 for non-images)
height	number	yes	Image height in pixels (0 for non-images)

fileName is the only editable field — you can rename files without re-uploading.

File Lifecycle

A file field goes through these states:

1. Ready

When you create a row, the platform automatically generates a unique fileId for each file field in that row. The slot is ready for upload:

{
  "status": "ready",
  "fileId": "Ua4ZaUehur50VOp2odFvy",
  "url": "",
  "fileName": "",
  "hash": "",
  "extension": "",
  "mimeType": "",
  "size": 0,
  "width": 0,
  "height": 0
}

2. Uploaded

File uploaded — metadata populated automatically:

{
  "status": "uploaded",
  "fileId": "Ua4ZaUehur50VOp2odFvy",
  "url": "https://s3.../cover.jpg",
  "fileName": "cover.jpg",
  "hash": "a1b2c3d4e5...",
  "extension": "jpg",
  "mimeType": "image/jpeg",
  "size": 340000,
  "width": 1200,
  "height": 800
}

3. Replaced

New file uploaded to the same slot — metadata updated, same fileId:

{
  "status": "uploaded",
  "fileId": "Ua4ZaUehur50VOp2odFvy",
  "url": "https://s3.../cover-v2.png",
  "fileName": "cover-v2.png",
  "hash": "f6g7h8i9j0...",
  "extension": "png",
  "mimeType": "image/png",
  "size": 520000,
  "width": 1600,
  "height": 900
}

Upload Process

Admin UI

In the Row Editor, click the upload icon on a file field:

• Drag-and-drop or click to select a file
• Image preview for supported formats (jpg, png, gif, webp, svg)
• Replace an existing file by uploading a new one
• Edit fileName inline

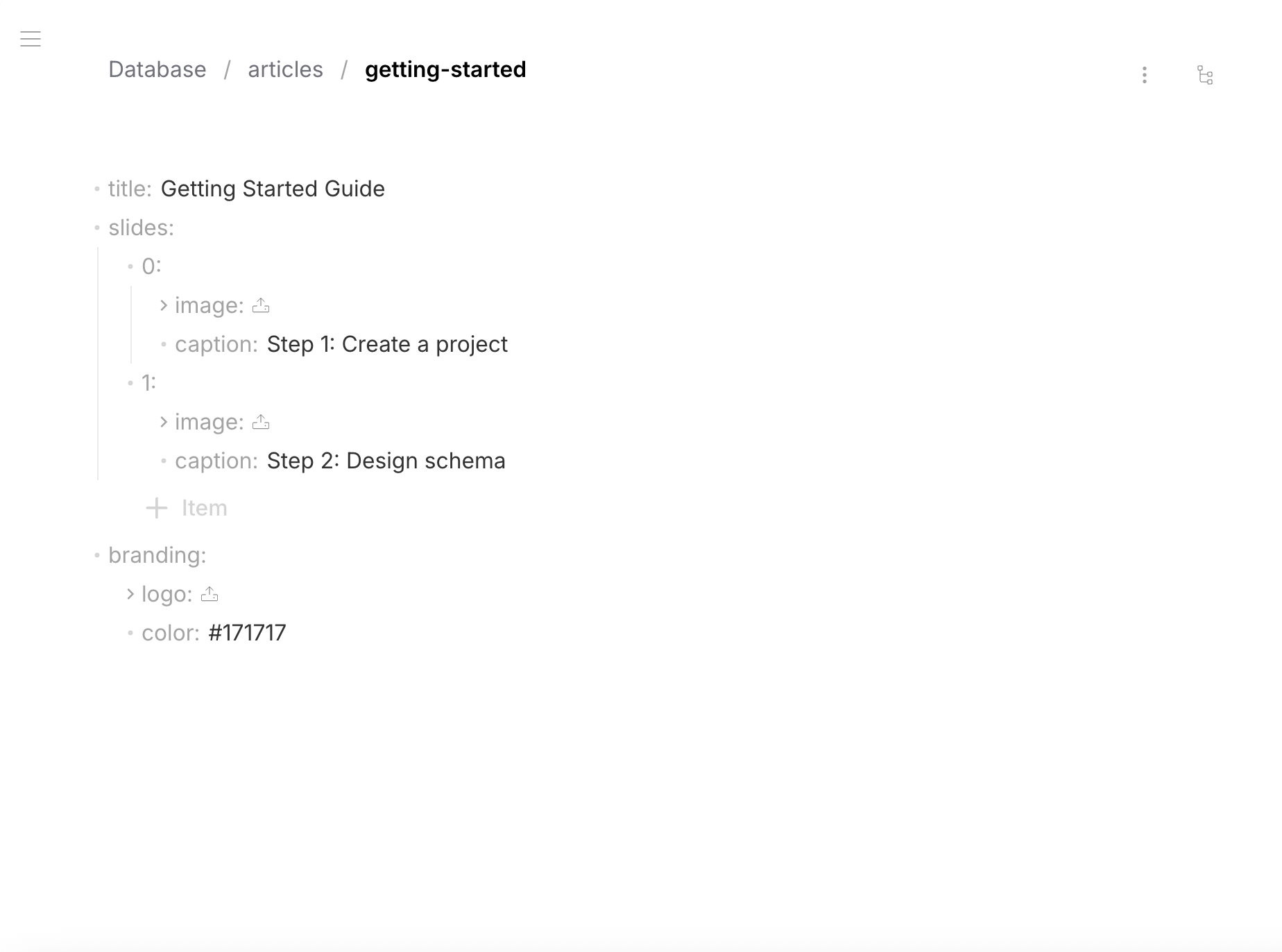

Row Editor — articles with file upload icons on slides images and branding logo

In the Table Editor, file field columns show fileName, size, status, and other metadata. You can also upload directly from the table view.

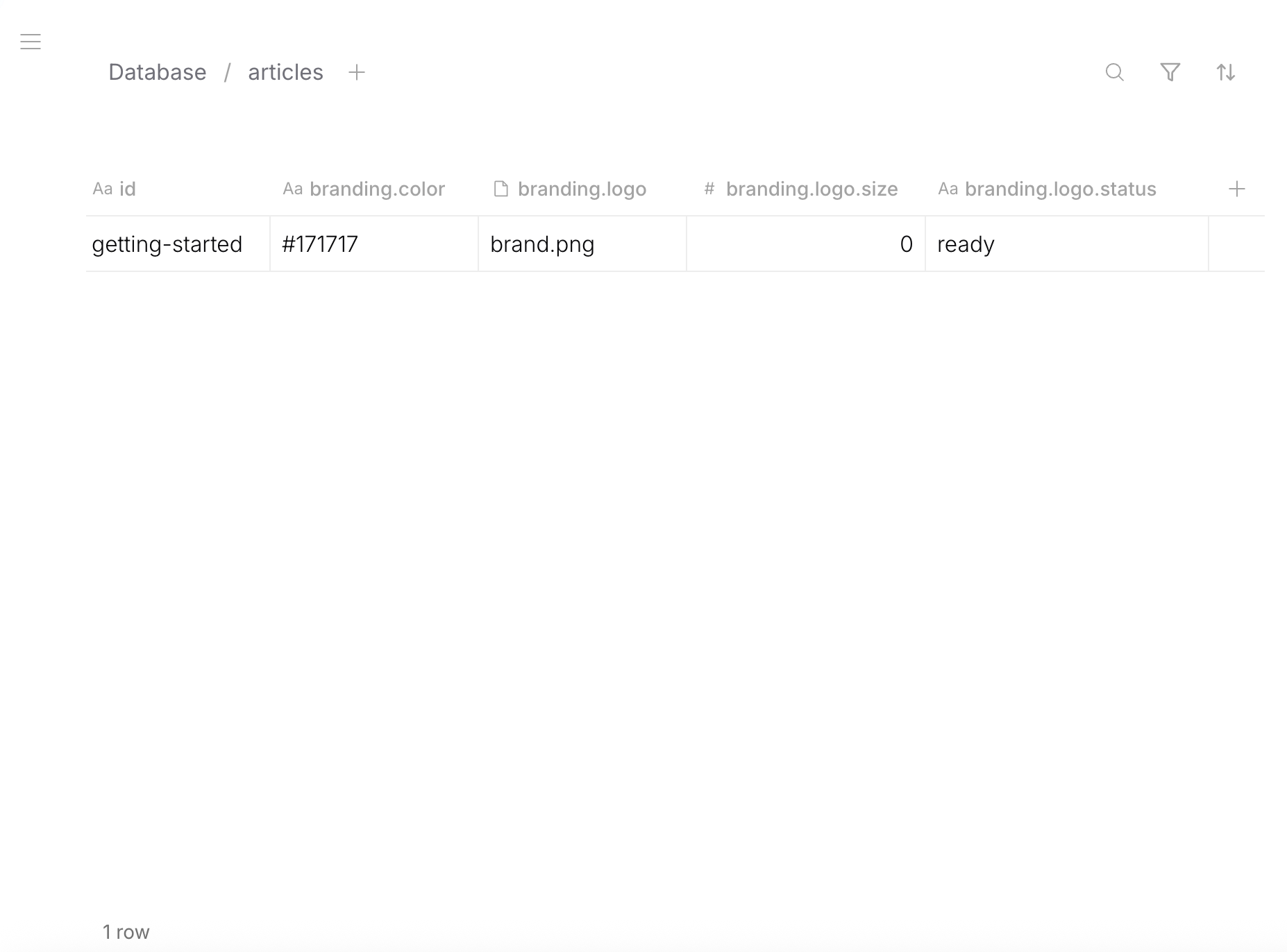

Table Editor — articles with branding.logo file columns (fileName, size, status)

REST API

Two-step process:

Step 1: Create or update a row — the response includes fileId for each file field:

curl -X POST /api/revision/<draftRevisionId>/tables/products/create-row \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer <token>" \
  -d '{ "rowId": "iphone-16", "data": { "title": "iPhone 16 Pro" } }'

Response includes file fields with assigned fileId:

{
  "data": {
    "title": "iPhone 16 Pro",
    "cover": {
      "status": "ready",
      "fileId": "abc123-def456-...",
      "url": "",
      "fileName": "",
      ...
    }
  }
}

Step 2: Upload the file using the fileId:

curl -X POST /api/revision/<draftRevisionId>/tables/products/rows/iphone-16/upload/abc123-def456-... \
  -H "Authorization: Bearer <token>" \
  -F "file=@cover.jpg"

After upload, the file field is populated with URL, size, mimeType, dimensions, and hash.

File Placement

File fields can appear anywhere in your schema:

Entire row is a file — dedicated assets table, each row = one file:

{ "status": "uploaded", "fileId": "...", "url": "https://s3.../logo.svg", "fileName": "logo.svg", ... }

Root array of files — each row is a gallery:

[
  { "status": "uploaded", "fileName": "front.jpg", ... },
  { "status": "uploaded", "fileName": "back.jpg", ... }
]

Root-level field — product cover, user avatar:

{ "title": "iPhone 16 Pro", "cover": { "status": "uploaded", "fileName": "cover.jpg", ... } }

Array of files — photo gallery, document attachments:

{ "title": "Product", "gallery": [{ "fileName": "photo1.jpg", ... }, { "fileName": "photo2.jpg", ... }] }

Inside nested object — company branding, category icon:

{ "branding": { "logo": { "fileName": "brand.png", ... }, "color": "#171717" } }

Inside array of objects — carousel with captions:

{ "slides": [{ "image": { "fileName": "step1.jpg", ... }, "caption": "Step 1" }] }

Assets

The Admin UI includes an Assets view — a gallery of all files across all tables in the project.

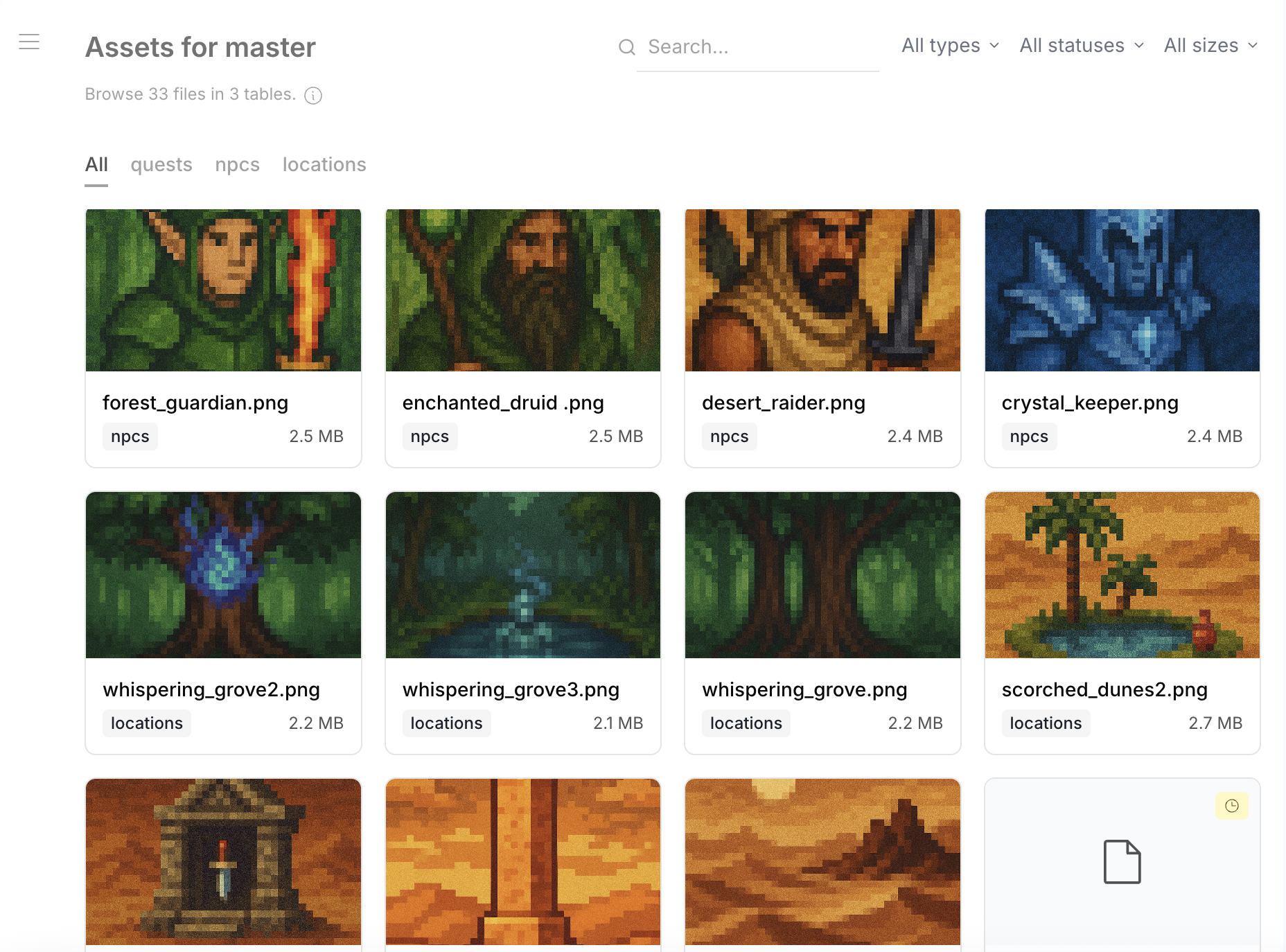

Assets gallery — 33 files across 3 tables with thumbnails, search, type/status/size filters, and table tabs

Features

• Gallery view — thumbnails for images, icons for documents
• Filter by table — show files from a specific table only
• Filter by type — images, documents, videos (based on mimeType)
• Filter by status — uploaded or pending
• Search — find files by name
• Pagination — even if one row has multiple files (e.g., a gallery with 50 images), each file appears as a separate entry
• File drawer — click any file to see full preview, metadata (URL, size, mimeType, dimensions), and which table/row it belongs to

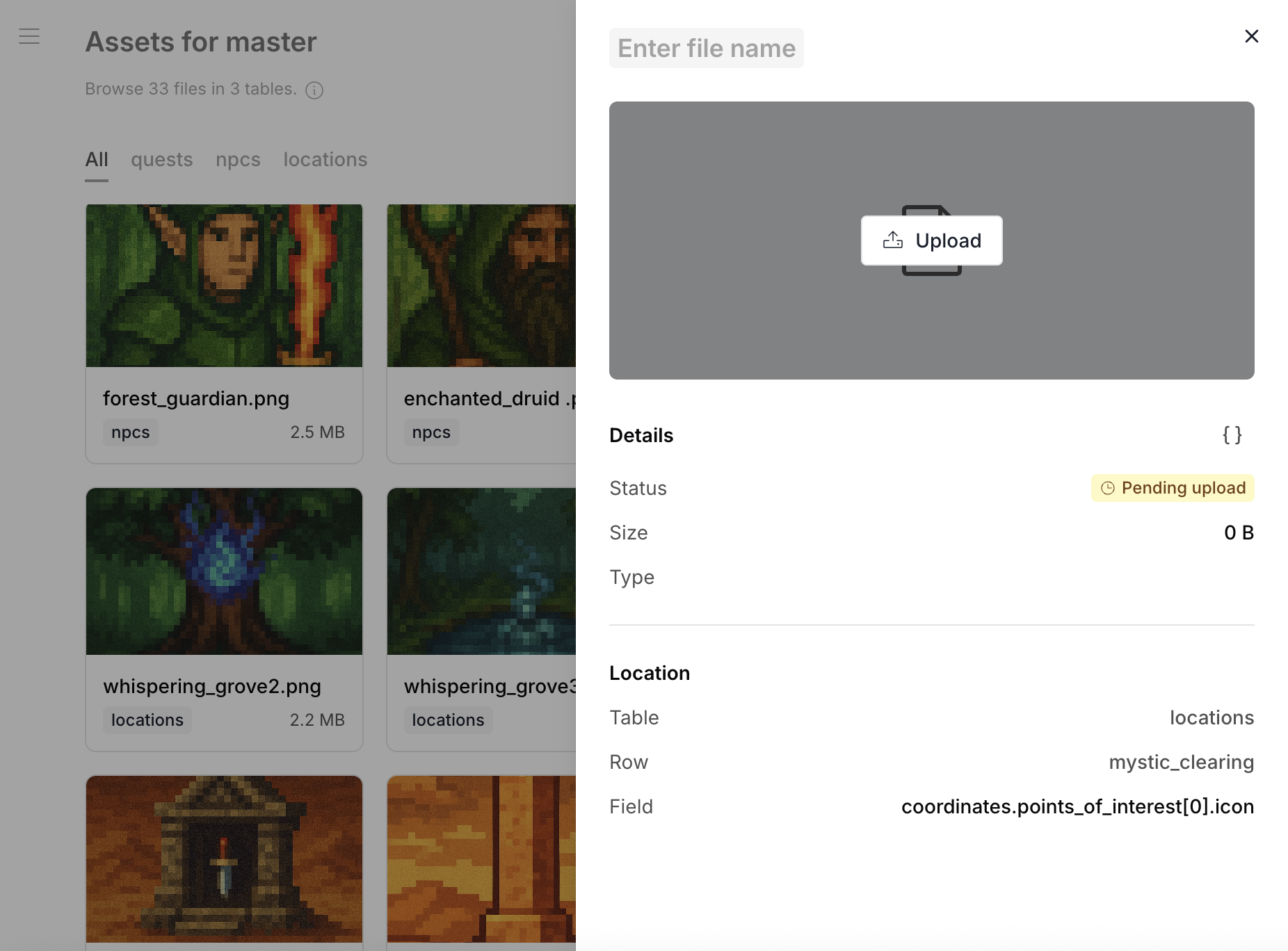

Assets drawer — file details with upload button, status, size, location (table, row, field path)

Limits

• Maximum file size: 50 MB (not yet configurable)
• S3-compatible storage must be configured for file uploads (see Deployment)
• Without S3 configured, file fields are available in schemas but upload functionality is disabled
